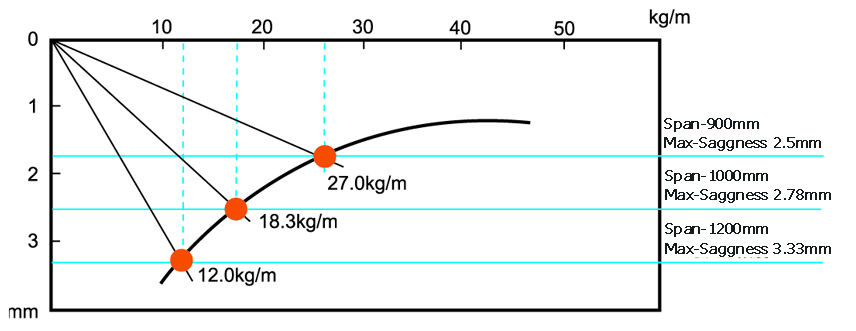

| FEATURES | LOADING CAPACITY | |||||||
| Type |  |
|||||||

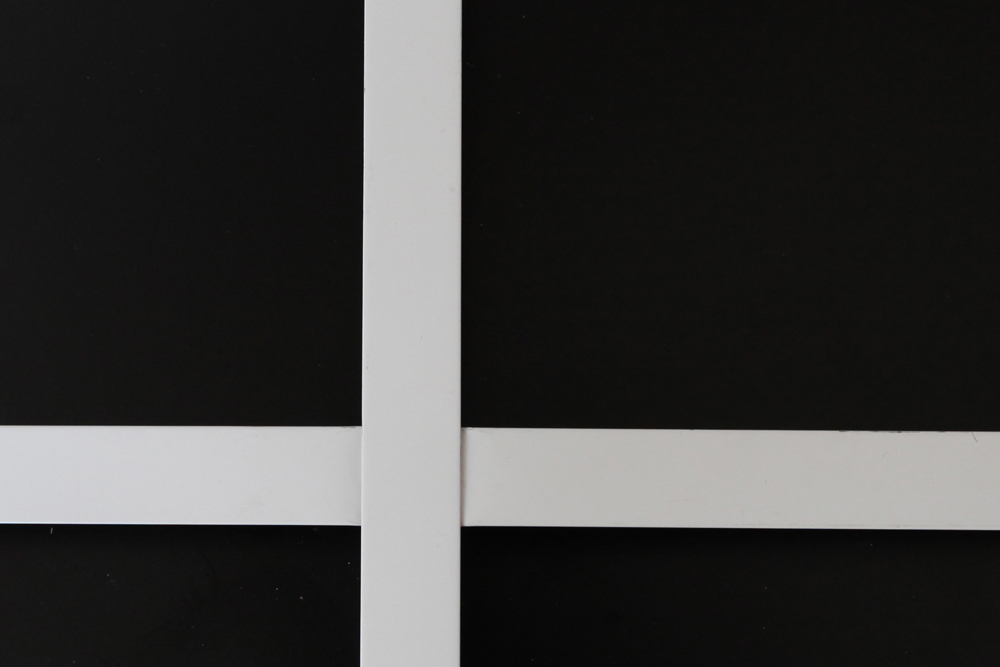

| 24mm Width 38mm Height Flat T-grid | ||||||||
| Color | ||||||||
| White (can be customized) | ||||||||
| Raw Materials | ||||||||
| Galvanized steel | ||||||||
| Stitch Line | ||||||||
| Can be customized | ||||||||
| Standard | ||||||||
| China National Standard GB/T11981-2008 | ||||||||
| INSTALLATION QTY CHART | ||||||||
| Module | Installation Method | Approximate Quantity PCS required per 100m2 (waste allowance not included) | ||||||
| Tile Size | Tile Qty | Main T Centres | Hanger Centres | Main T | 1.2 Cross T | 0.6 Cross T | Hanger | Wall angle |
| 1200x600 | 139pcs | 1200mm | 1200mm | 23 | 139 | 70 | 14 | |
| 600mm | 1200mm | 48 | 139 | 140 | ||||
| 600x600 | 278pcs | 1200mm | 1200mm | 23 | 139 | 139 | 70 | |
| 600mm | 1200mm | 48 | 278 | 140 | ||||
| DIMENSION | ||||||||
| Item | code no. | Dimension（mm) | Thickness | Qty./box | Weight/box | |||
| length | width | height | mm | pcs | kgs | |||
 |
Main T | A138 | 3600/3660 | 24 | 38 | 0.35 | 25 | 25-26.5 |
| 0.3 | ||||||||
| 0.27 | ||||||||
| Cross T | 1200/1220 | 24 | 26 | 0.35 | 50 | 12.5-13.5 | ||
| 0.3 | ||||||||
| 0.27 | ||||||||
| Cross T | 600/610 | 24 | 26 | 0.35 | 75 | 9-10.6 | ||
| 0.3 | ||||||||
| 0.27 | ||||||||

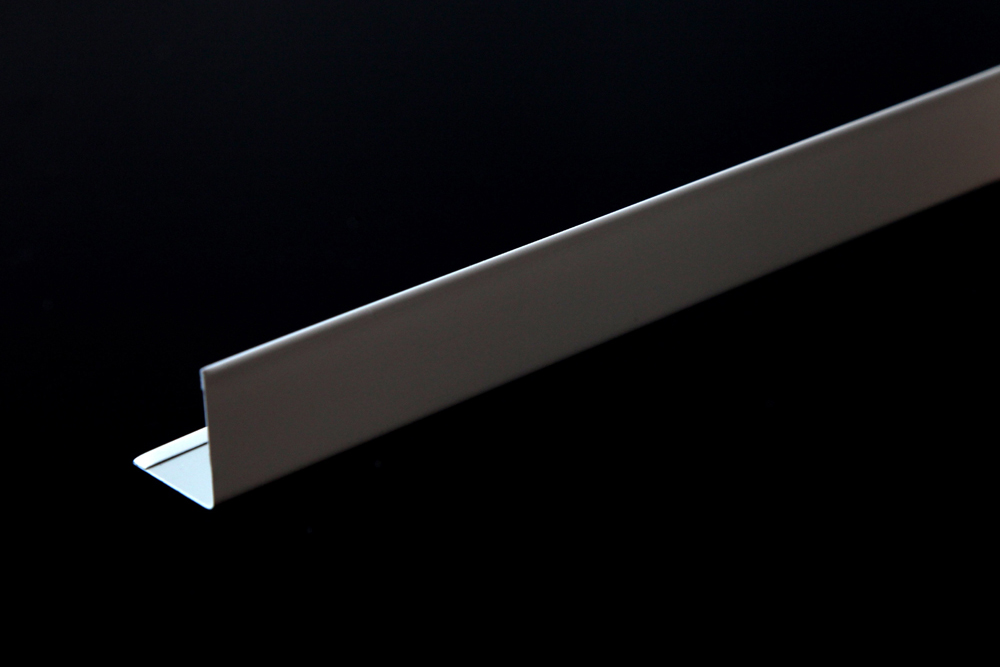

| Wall angle | L | 3000/3050 | 24 | 24 | 0.5 | 40 | 20-21 | |
| 22 | 22 | 0.45 | ||||||
| W | 15x15x10 | 0.4 | ||||||
